Arc Flash Safety Boundaries Poster | NFPA 70E Approach Limits

The Visual Standard for Electrical Safety: Arc Flash Safety Boundaries Poster

In energized environments, distance is your primary protection. Our arc flash safety boundaries poster is engineered to transform abstract NFPA 70E approach limits into a professional, high-consequence visual guide. By depicting a front-facing electrical control panel radiating hazard zones, this arc flash safety boundaries poster acts as an authoritative reference for electricians and maintenance teams. It reinforces the critical atmospheric and technical reality of switchgear rooms, emphasizing that arc flash risks increase sharply as one approaches energized parts.

Visualizing NFPA 70E Approach Limits

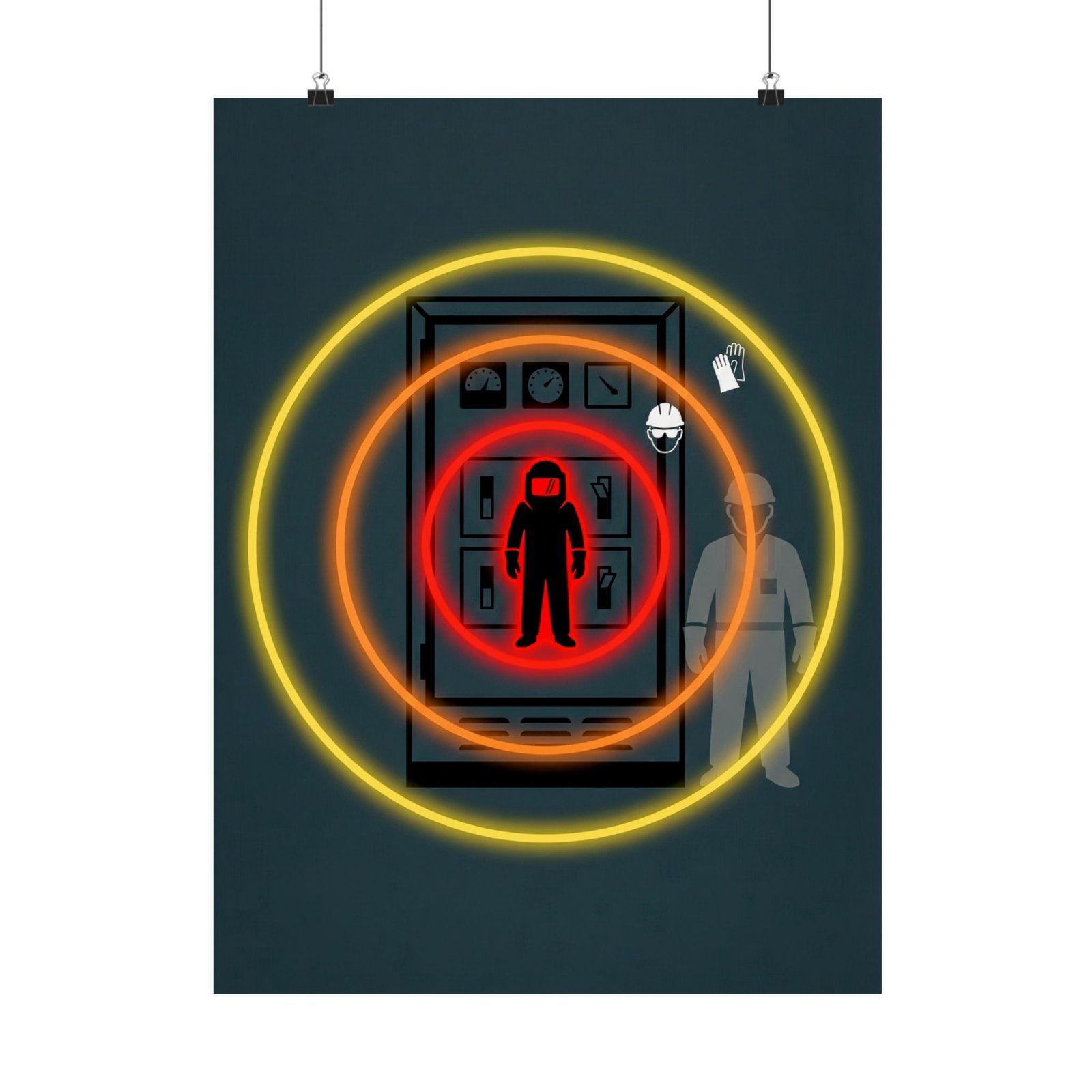

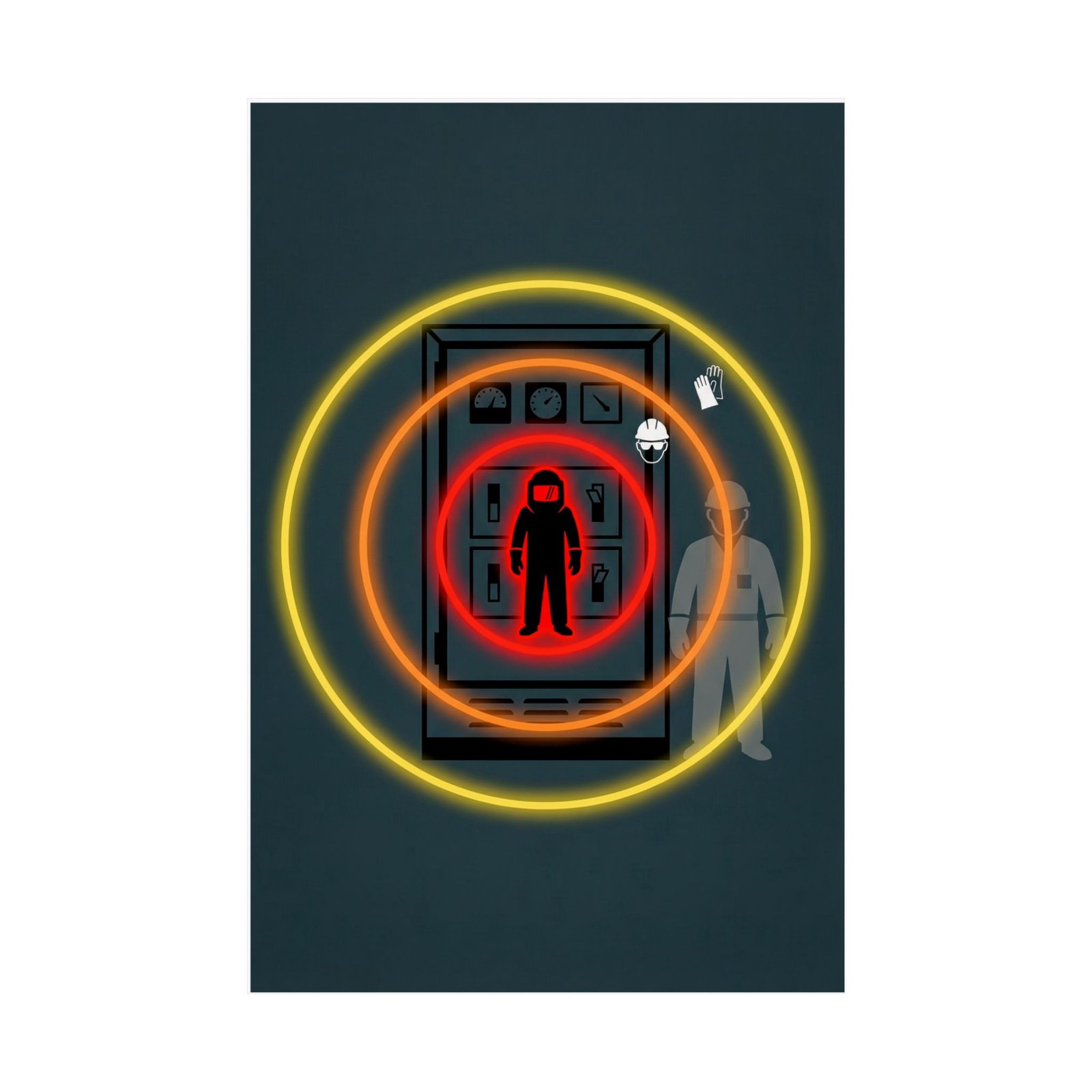

The arc flash safety boundaries poster utilizes a clear, three-zone methodology to simplify complex electrical safety standards:

• Arc Flash Boundary (Red Zone): Illustrates the hazard area where incident energy requires a full arc-flash suit, face shield, and hood to prevent fatal thermal exposure.

• Restricted Approach Boundary (Orange Ring): Signals the transition to a high-shock hazard zone where only qualified persons using insulated tools and energized work permits may enter.

• Limited Approach Boundary (Yellow Ring): Establishes the outer safety perimeter for hazard awareness, warning unqualified personnel and visitors to halt.

Museum-Grade Quality for Technical Environments

This arc flash safety boundaries poster is printed on 175–189 g/m² heavyweight archival paper, ensuring long-term color stability in professional industrial spaces. We utilize Giclée printing techniques for bright, fade-resistant colors that make the neon-like concentric rings pop against the dark slate-grey background. The light-absorbing matte finish reduces glare from overhead workshop lighting, allowing the technical PPE details to remain visible from a distance. For any safety officer, this arc flash safety boundaries poster is an audit-ready training aid that supports a zero-compromise electrical safety culture.
