Overhead & Gantry Crane Hand Signal Chart | Factory Safety Poster

Precision Communication for Indoor Lifting Operations

In the confined spaces of a warehouse or factory, an overhead & gantry crane hand signal chart is an essential safeguard against equipment damage and personnel injury. While mobile cranes often use specialized signals, overhead systems rely on the precise coordination of Trolley and Bridge movements. This poster provides the “Standard Method” of communication, ensuring that every operator—regardless of experience level—responds to the same visual cues.

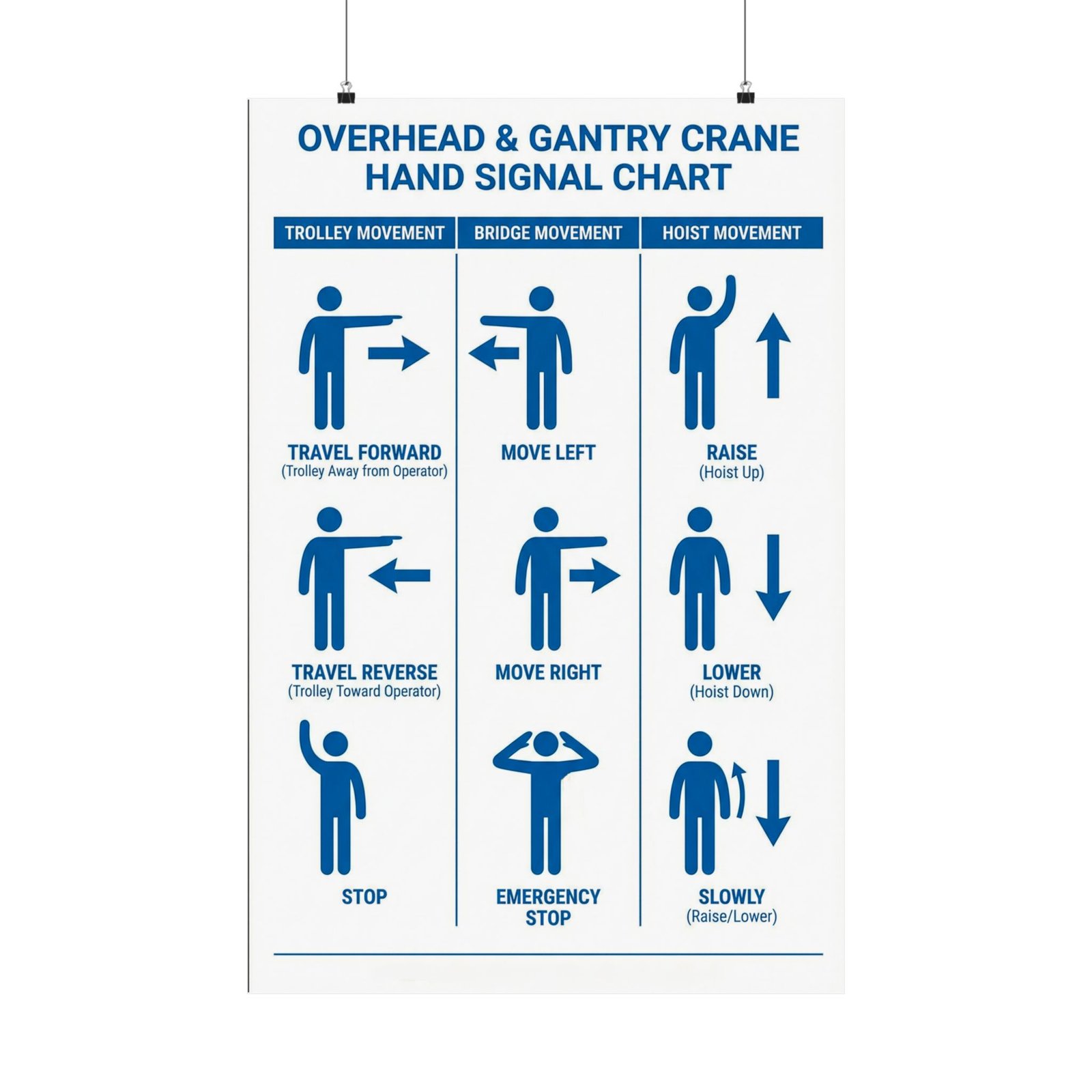

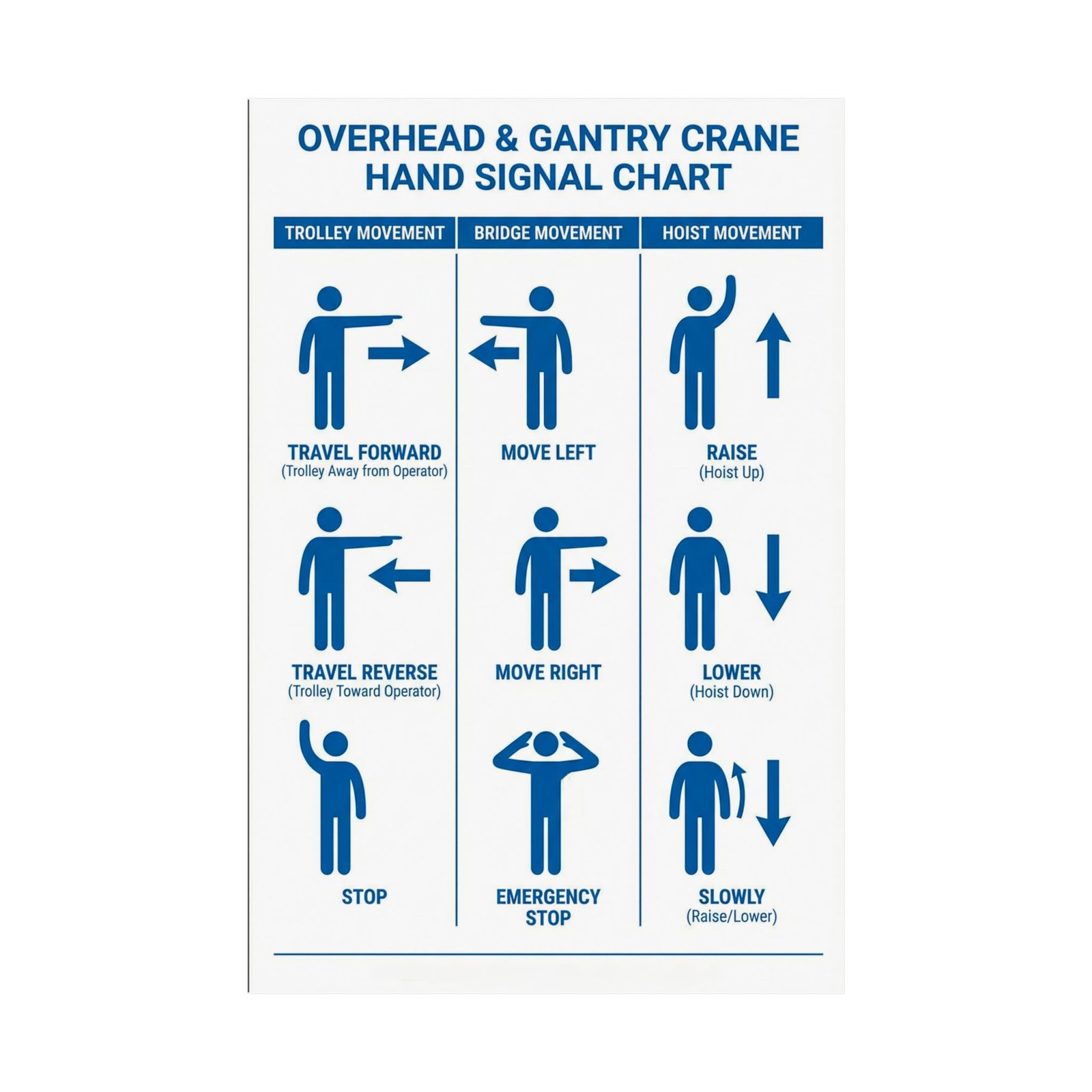

Three-Column Grid for Rapid Recognition

Our overhead & gantry crane hand signal chart is structured to eliminate cognitive friction. By grouping signals into distinct categories, we allow for faster mental processing during a lift:

• Trolley Movement: Clear directional arrows for “Travel Forward” and “Travel Reverse” to manage trolley positioning away from or toward the operator.

• Bridge Movement: Distinct signals for “Move Left” and “Move Right,” including the high-visibility “Emergency Stop” gesture (both hands raised to the head).

• Hoist Movement: Standardized vertical cues for “Raise,” “Lower,” and the critical “Slowly” modifier for precision load placement.

Built for Professional Industrial Environments

This overhead & gantry crane hand signal chart is not a flimsy temporary sign. It is a professional training aid printed on 175–189 g/m² heavyweight archival paper. Using Giclée printing technology, the industrial blue icons remain sharp and fade-resistant, even when exposed to regular indoor light. Whether you are running a 24/7 fulfillment center or a specialized fabrication shop, this overhead & gantry crane hand signal chart serves as a persistent, non-verbal supervisor.

• Audit Readiness: Displaying this chart satisfies the visual training requirements often cited during OSHA 1910.179 inspections for overhead and gantry cranes.

• For immediate training needs, check out our Crane Hand Signal Digital Downloads to print your own field guides.
