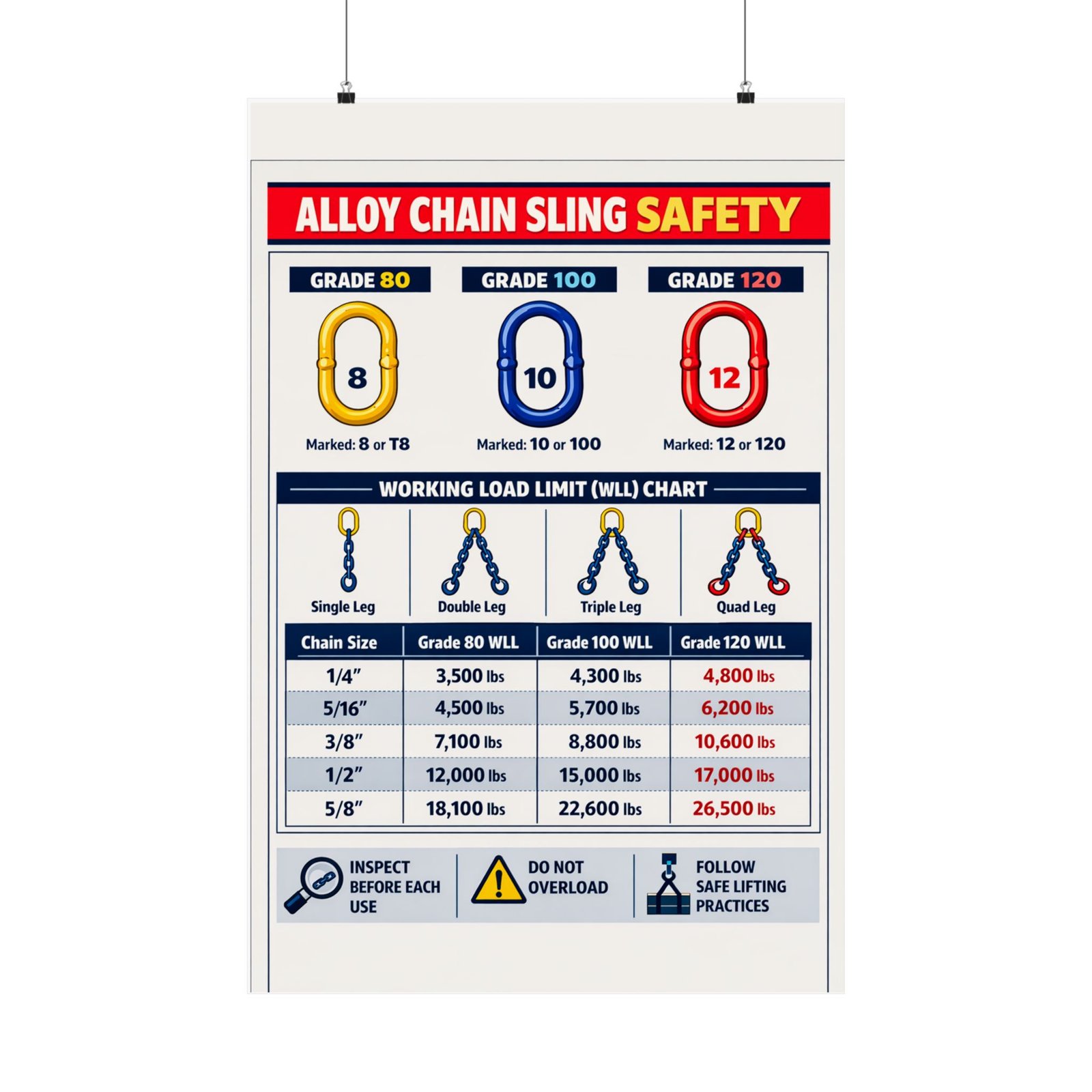

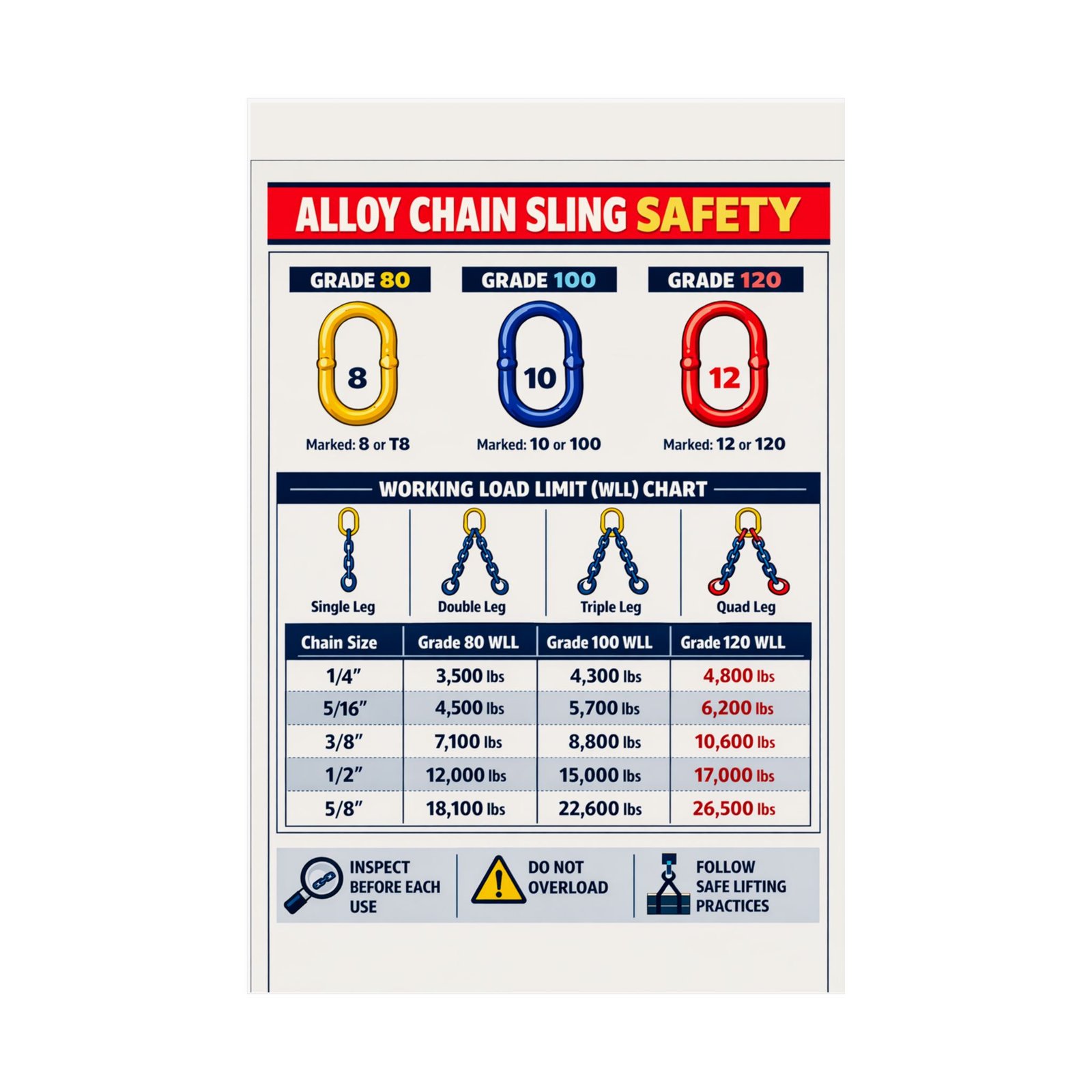

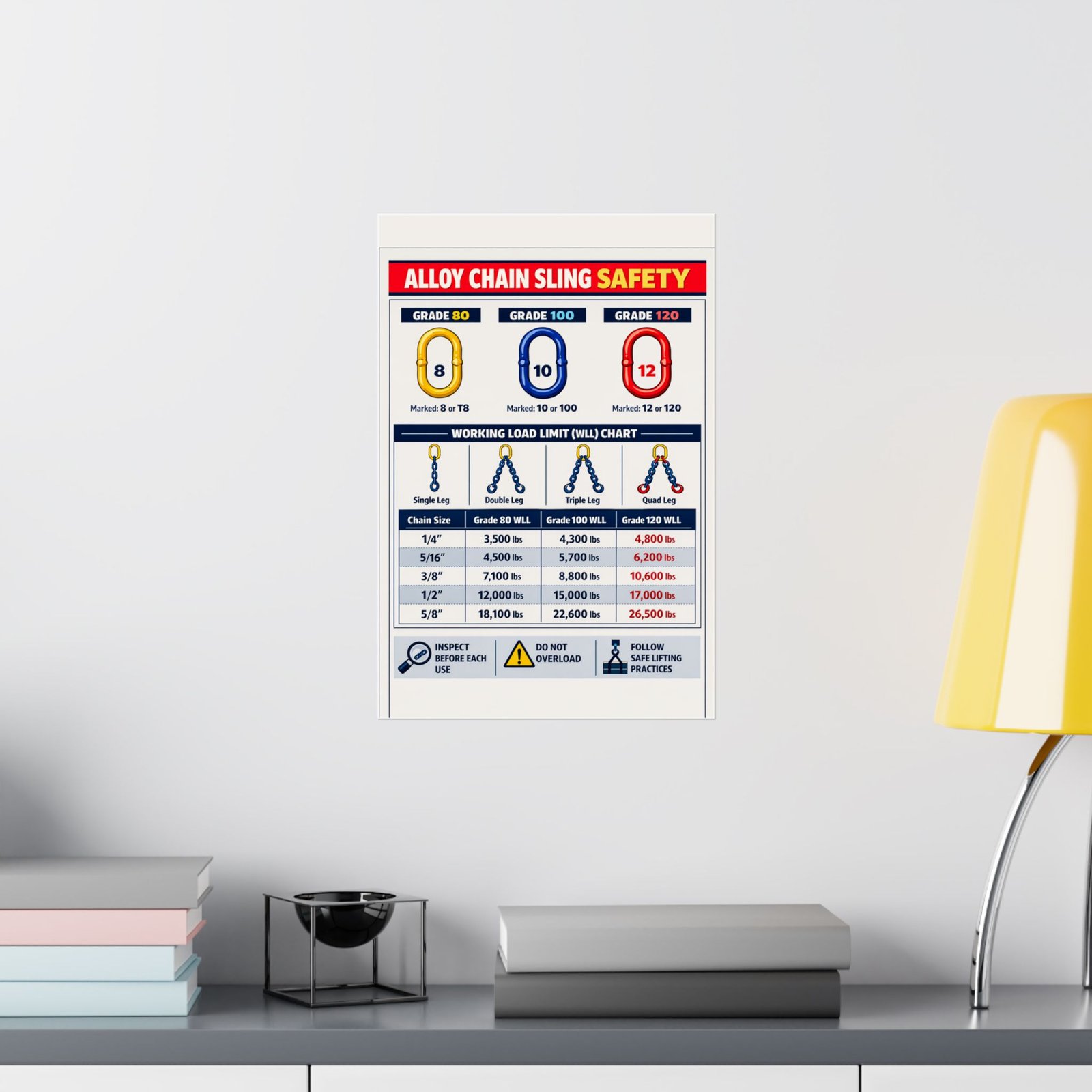

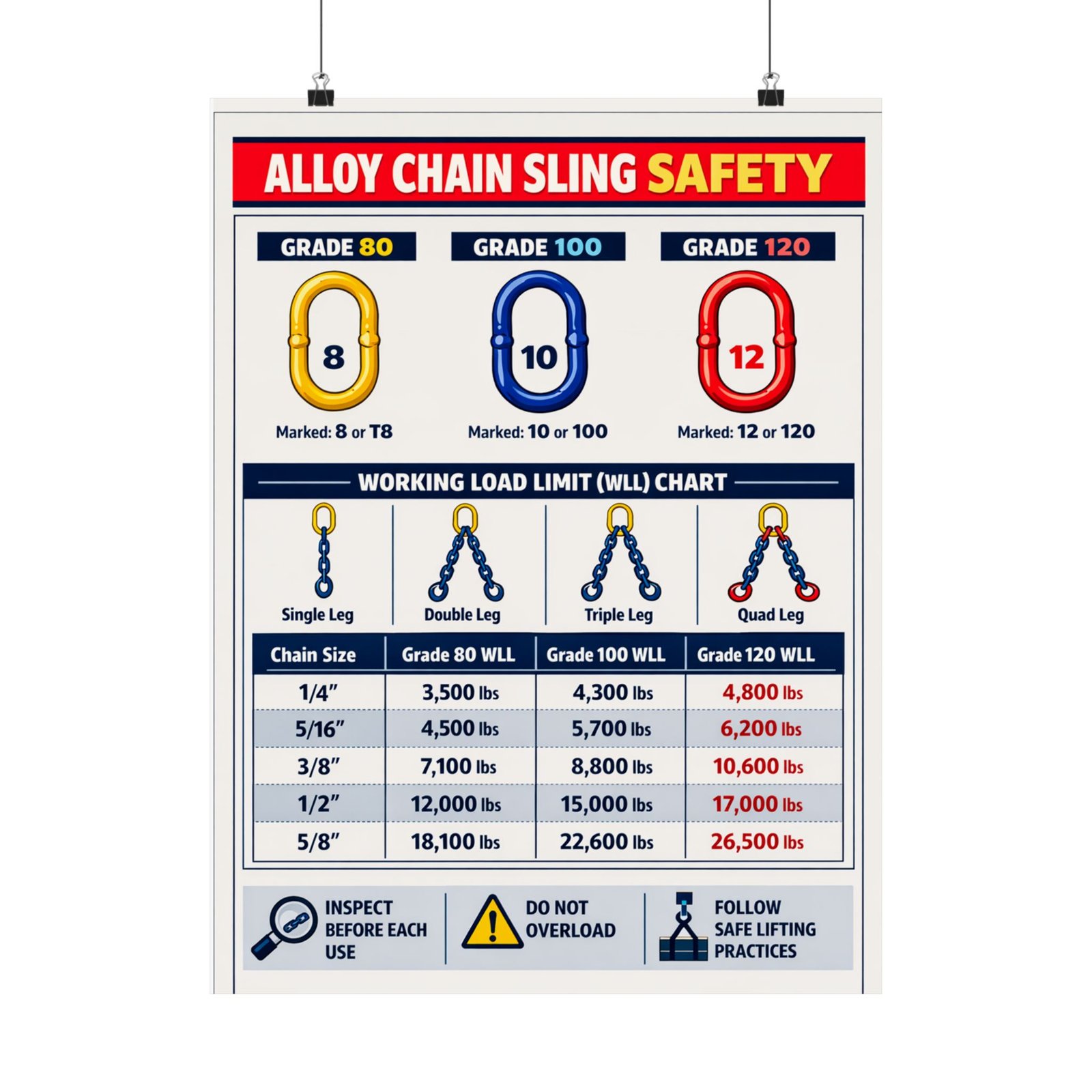

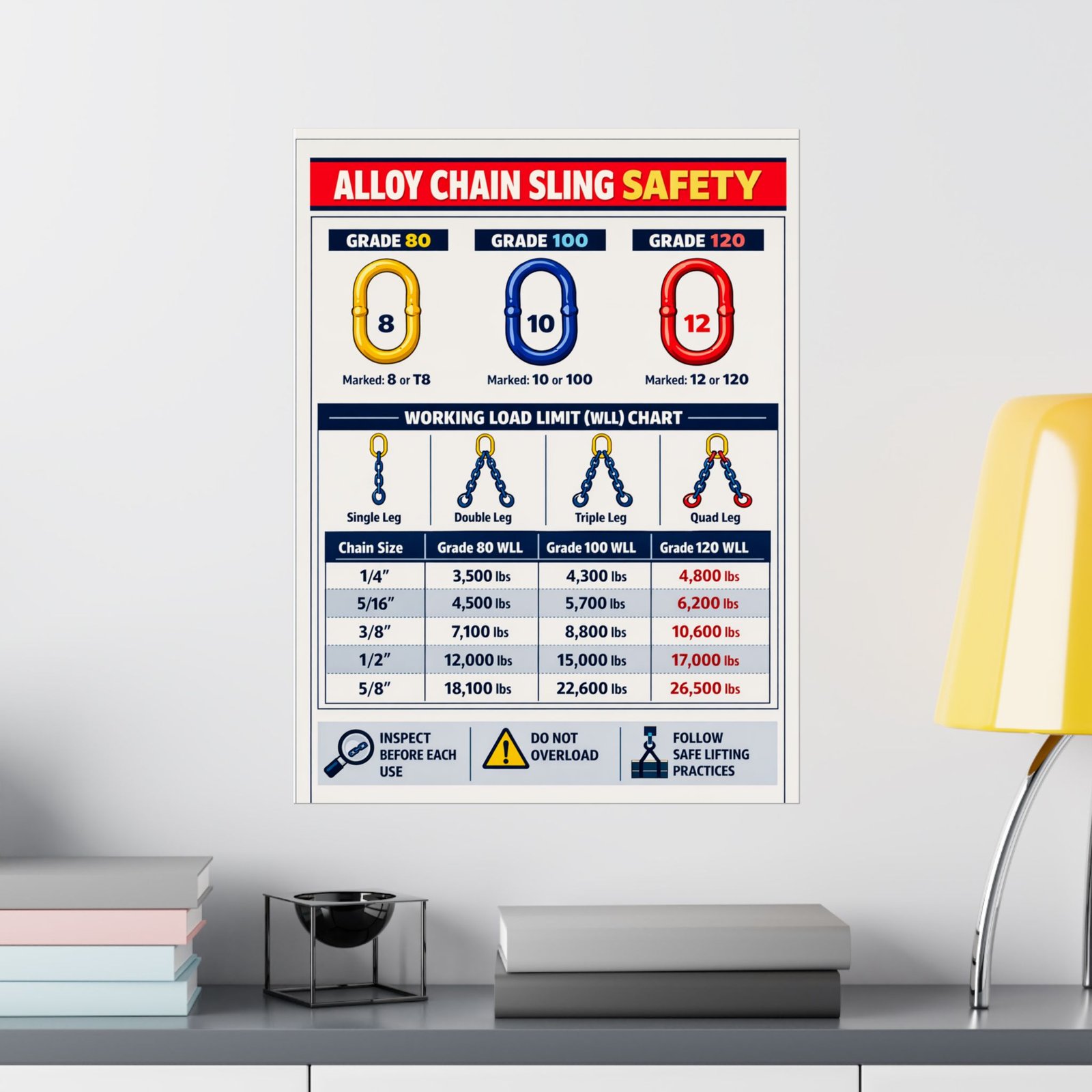

Alloy Chain Sling Safety Poster | Chain Grade & WLL Reference

Eliminate guesswork and prevent overloading with the alloy chain sling safety poster. This technical reference chart is designed to help riggers and safety managers quickly identify chain grades (80, 100, and 120) and their corresponding Working Load Limits (WLL). Featuring high-contrast color coding and a structured capacity table, this alloy chain sling safety poster ensures that every lift is planned with precision and is compliant with ASME B30 standards.

Grade Identification System: Visually illustrates the markings and colors for Grade 80 (Yellow), 100 (Blue), and 120 (Red) to ensure correct component matching.
Structured WLL Table: Provides a clear grid for various chain sizes (1/4″ to 5/8″), showing the capacity increases across the different strength tiers.
Internal Link: A vital shop resource; pair this alloy chain sling safety poster with our Critical Lift Planning Checklist for total rigging authority.

The Visual Standard for Rigging Shops: Alloy Chain Sling Safety Poster

In heavy-duty rigging, misidentifying a chain grade can lead to catastrophic failure. Our alloy chain sling safety poster is engineered to be a persistent, non-verbal supervisor in your tool room or fabrication yard. By combining visual grade identification with a structured numeric WLL chart, the poster reinforces the absolute rule: Always identify the grade correctly and never exceed its rated capacity. This alloy chain sling safety poster acts as an essential training aid for riggers, signal persons, and equipment inspectors who must verify equipment integrity before every shift.

Mastering Chain Grade and Capacity Identification

The alloy chain sling safety poster is structured into three instructional sections to maximize site safety:

Grade Visuals: Displays vector illustrations of chain links with prominent “8”, “10”, and “12” markings, teaching workers how to distinguish between grades by stamped markings and industrial color codes.
Working Load Limit (WLL) Data: The central table on the alloy chain sling safety poster covers single, double, triple, and quad leg configurations, providing precise poundage values for common chain sizes from 1/4″ to 5/8″.
Safety Protocol Reminders: Includes critical icons for “Inspect Before Use” and “Do Not Overload,” ensuring the alloy chain sling safety poster ties technical data back to behavioral safety.

Archival Quality for High-Traffic Industrial Areas

This alloy chain sling safety poster is printed on 175–189 g/m² heavyweight archival paper with a premium matte finish. We chose this light-absorbing surface to ensure that the WLL tables remain legible in high-glare environments like rigging shops or outdoor job site trailers. Using Giclée printing technology, the vibrant yellow, blue, and red identifiers remain sharp and fade-resistant. For any safety director, this chain sling safety poster is an audit-ready reference that demonstrates a commitment to OSHA 1910.184 and ASME B30 standards.

Compliance Advantage: Directly supports equipment verification and rigging inspection training requirements.
Strategic Placement: Ideal for rigging stations, lift planning boards, and equipment storage areas where alloy chain sling safety poster reference is needed most.
