Rigging Hitch Capacity Poster | Vertical, Basket & Choker Chart

$23.78

Eliminate calculation errors and improve site safety with the rigging hitch capacity poster. This technical training chart provides an immediate visual comparison of how different sling configurations—Vertical, Basket, and Choker—drastically alter a sling’s Working Load Limit (WLL). By using a high-visibility, color-coded grid, this rigging hitch capacity poster ensures that every rigger understands the mechanical advantages and reduction factors required for a safe and compliant lift.

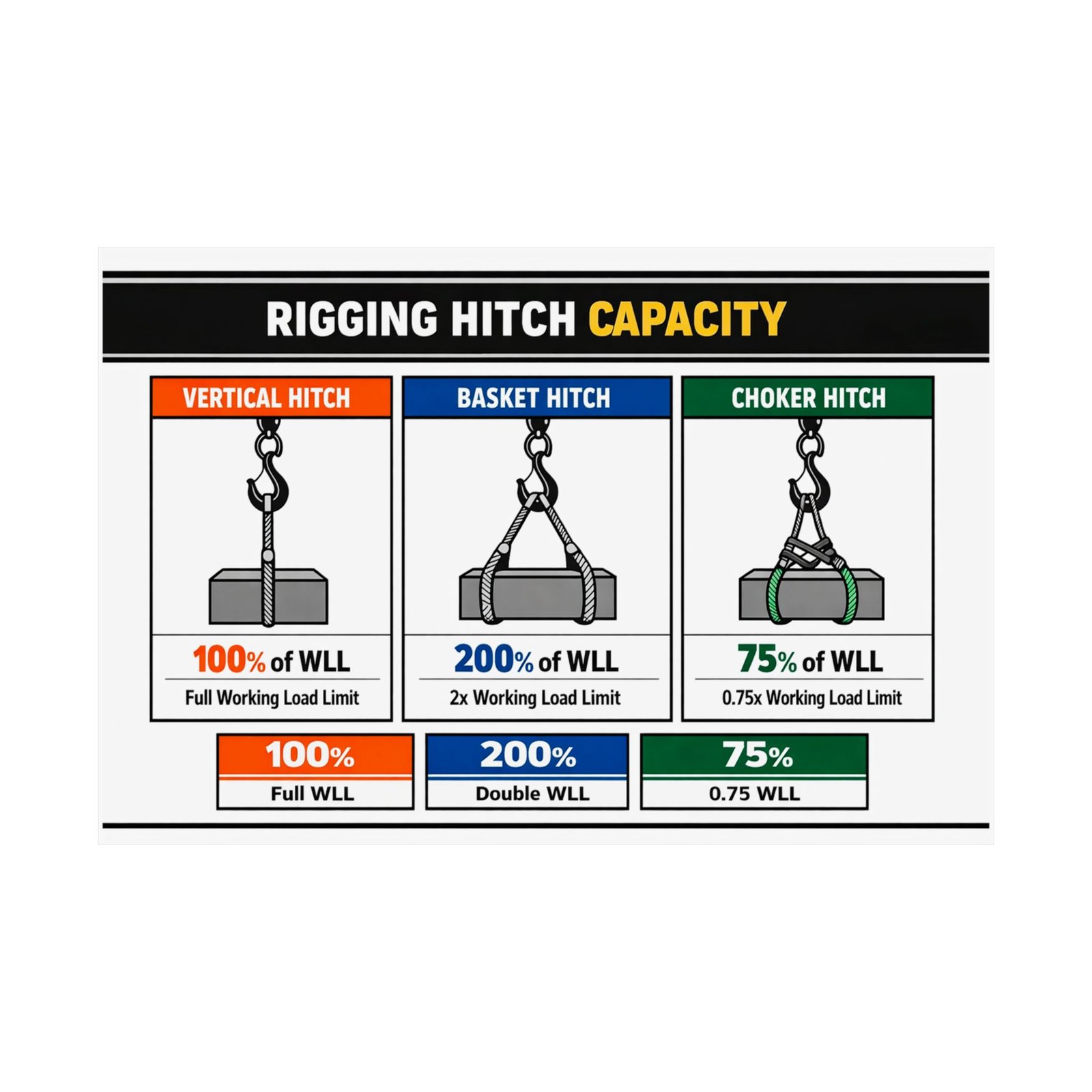

Three-Column Capacity Logic: Features high-contrast Orange (Vertical), Blue (Basket), and Green (Choker) panels for rapid identification of load factors.
Instant WLL Reference: Clearly illustrates why a basket hitch provides 200% capacity while a choker hitch reduces safe lifting limits to 75%.
Internal Link: A mandatory shop resource; pair this rigging hitch capacity poster with our Uneven Load Distribution Poster for advanced rigging training.

The Science of Sling Configuration: Rigging Hitch Capacity Poster

In professional rigging, the rated capacity of a sling is only half the story; the hitch configuration determines the actual safe load. Our rigging hitch capacity poster is engineered to transform complex ASME B30.9 standards into a clear, field-ready visual guide. Whether you are gaining mechanical advantage with a basket hitch or dealing with the bending stress of a choker, this rigging hitch capacity poster acts as a persistent technical supervisor, preventing the dangerous assumption that a sling always maintains its 100% vertical rating.

Visualizing WLL Adjustments Across Three Hitches

The rigging hitch capacity poster is structured into three instructional zones to drive home the relationship between configuration and tension:

Vertical Hitch (100% WLL): Established as the baseline reference where the sling carries the load directly in line with tension.
Basket Hitch (200% WLL): The rigging hitch capacity poster visually demonstrates how distributing the weight across two legs effectively doubles capacity, assuming proper symmetry.
Choker Hitch (75% WLL): Provides a critical warning that the compression and angular stress at the choke point require a 25% reduction in safe lifting capacity.

Archival Quality for Training Classrooms and Rigging Bays

This rigging hitch capacity poster is printed on 175–189 g/m² heavyweight archival satin paper. We chose this premium satin finish to offer a low-glare surface that remains readable under the high-intensity fluorescent lights of a training classroom or a crane cab. Using bright pigment inks, the hitch capacity poster delivers intense, long-lasting colors that resist fading even in sun-drenched site offices. For any safety manager, this rigging hitch capacity poster is an audit-ready training aid that demonstrates a commitment to rigorous rigging discipline and OSHA 1910.184 standards.

Compliance Advantage: Directly supports “Sling Hitch” and “Load Factor” training modules for signal persons and riggers.
Strategic Placement: Ideal for rigging stations, crane cabins, and lift planning areas where rigging hitch capacity poster reference is critical for pre-lift reviews.
