The Reality of Load Imbalance: Uneven Load Distribution in Multi-Leg Bridles

In professional rigging, the assumption that every leg of a bridle is carrying its fair share is a leading cause of catastrophic hardware failure. Our uneven load distribution in multi-leg bridles poster is engineered to visually prove that geometry and CG alignment dictate tension, not just the number of slings used. By illustrating a scenario where two legs are carrying 80% of the weight, this uneven load distribution in multi-leg bridles poster teaches riggers to anticipate overstress fractures and hardware breakage, directly supporting ASME B30.9 sling safety protocols.

Visualizing the 80/20 Overload Condition

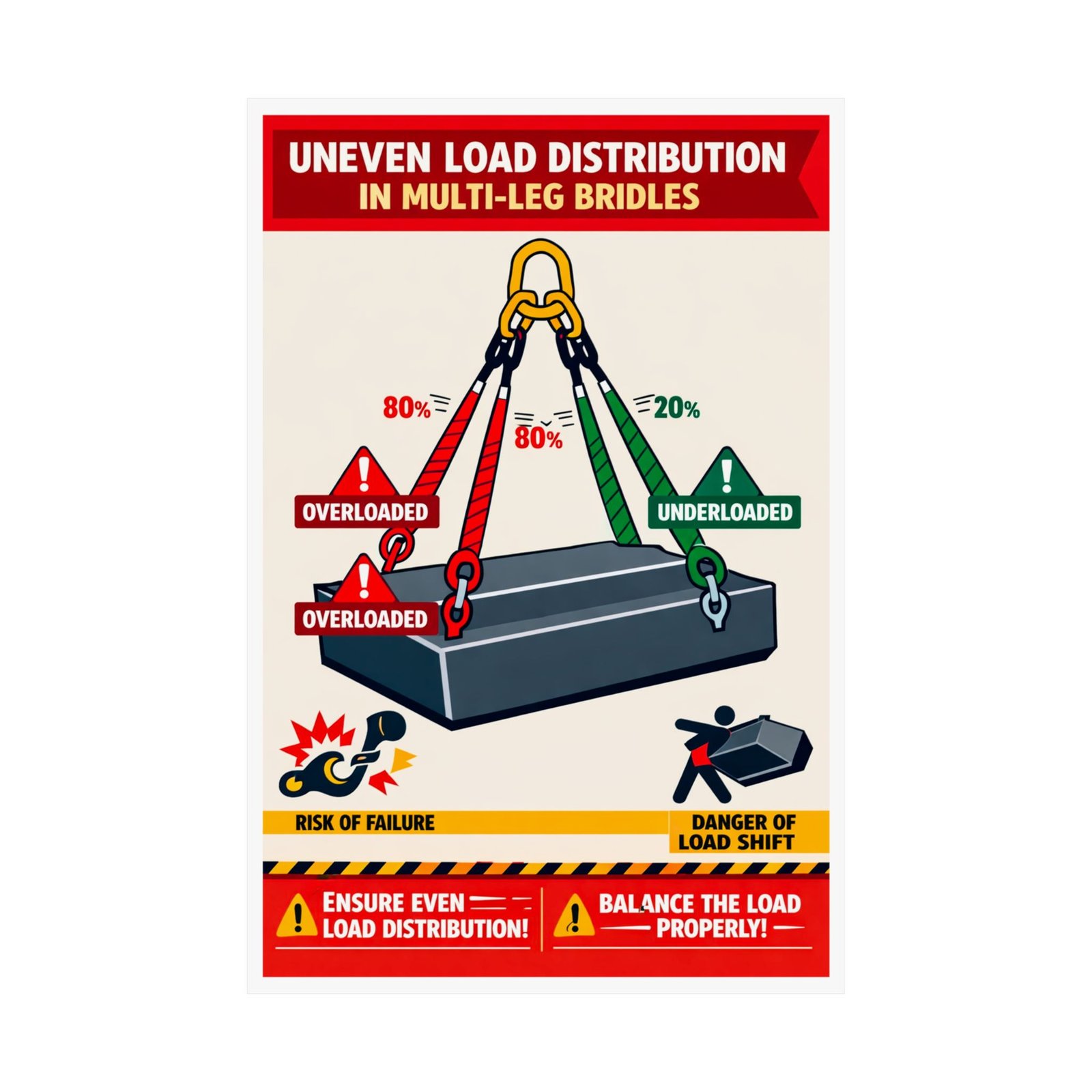

The uneven load distribution in multi-leg bridles chart is structured to simplify complex rigging math into field-ready awareness:

• Overloaded vs. Underloaded: Uses red and green color coding to distinguish between the highly stressed “Overloaded” legs and the dangerous slack in “Underloaded” components.

• Sling Angle Realism: The uneven load distribution in multi-leg bridles poster demonstrates how improper rigging geometry causes the load to “tilt,” creating rotational instability and unpredictable swing hazards.

• Instructional Correction: The bottom red banner provides the final behavioral directive: “ENSURE EVEN LOAD DISTRIBUTION” and “BALANCE THE LOAD PROPERLY,” reinforcing proactive lift planning.

Archival Quality for Training Classrooms and Fabrication Shops

This uneven load distribution in multi-leg bridles poster is printed on 175–189 g/m² heavyweight archival paper with a premium matte finish. We chose this light-absorbing surface to ensure that the technical percentages and warning icons remain perfectly legible under the high-intensity fluorescent lights of a training center or the bright sun of a site trailer. Using Giclée printing technology, the vivid red and green indicators on the uneven load distribution in multi-leg bridles poster remain sharp and fade-resistant, providing a durable reference for apprentice riggers and experienced operators alike.

• Compliance Advantage: Directly supports “Rigging Math” and “Sling Tension” training modules for NCCCO Rigger certification.

• Strategic Placement: Ideal for rigging stations, crane operator training rooms, and lift planning offices where uneven load distribution in multi-leg bridles awareness is a top-tier safety priority.
