Wire Rope Inspection Safety Poster | Crane & Rigging Damage Chart

Eliminate the risk of sudden cable failure with the wire rope inspection safety poster. This technical training reference uses a high-contrast, side-by-side comparison format to help riggers and inspectors differentiate between safe and unsafe rope conditions. By providing clear visual cues for birdcaging, kinks, and broken wires, this rope inspection safety poster ensures that compromised equipment is identified and removed from service before it leads to a catastrophic lift failure.

Visual Diagnostic Format: Features “Safe vs. Unsafe” panels with green checkmarks and red “X” icons for instant field recognition of structural damage.
Core Failure Mode Training: Illustrates critical rejection criteria, including strand displacement, permanent deformation, and wire fatigue clusters.
Internal Link: A vital companion for equipment maintenance; pair this wire rope inspection safety poster with our Daily Crane Inspection Wall Chart for total machine oversight.

The Visual Standard for Mechanical Integrity: Wire Rope Inspection Safety Poster

In professional crane and rigging operations, the wire rope is the most critical link in the lifting chain. Our wire rope inspection safety poster is engineered to simplify complex mechanical failure modes into instantly recognizable visual cues. Whether caused by shock loading, improper spooling, or simple fatigue, rope damage often follows predictable patterns. This wire rope inspection safety poster acts as a persistent, non-verbal supervisor in your maintenance workshop or crane cab, ensuring that OSHA 1926.1413 inspection protocols are followed with zero ambiguity.

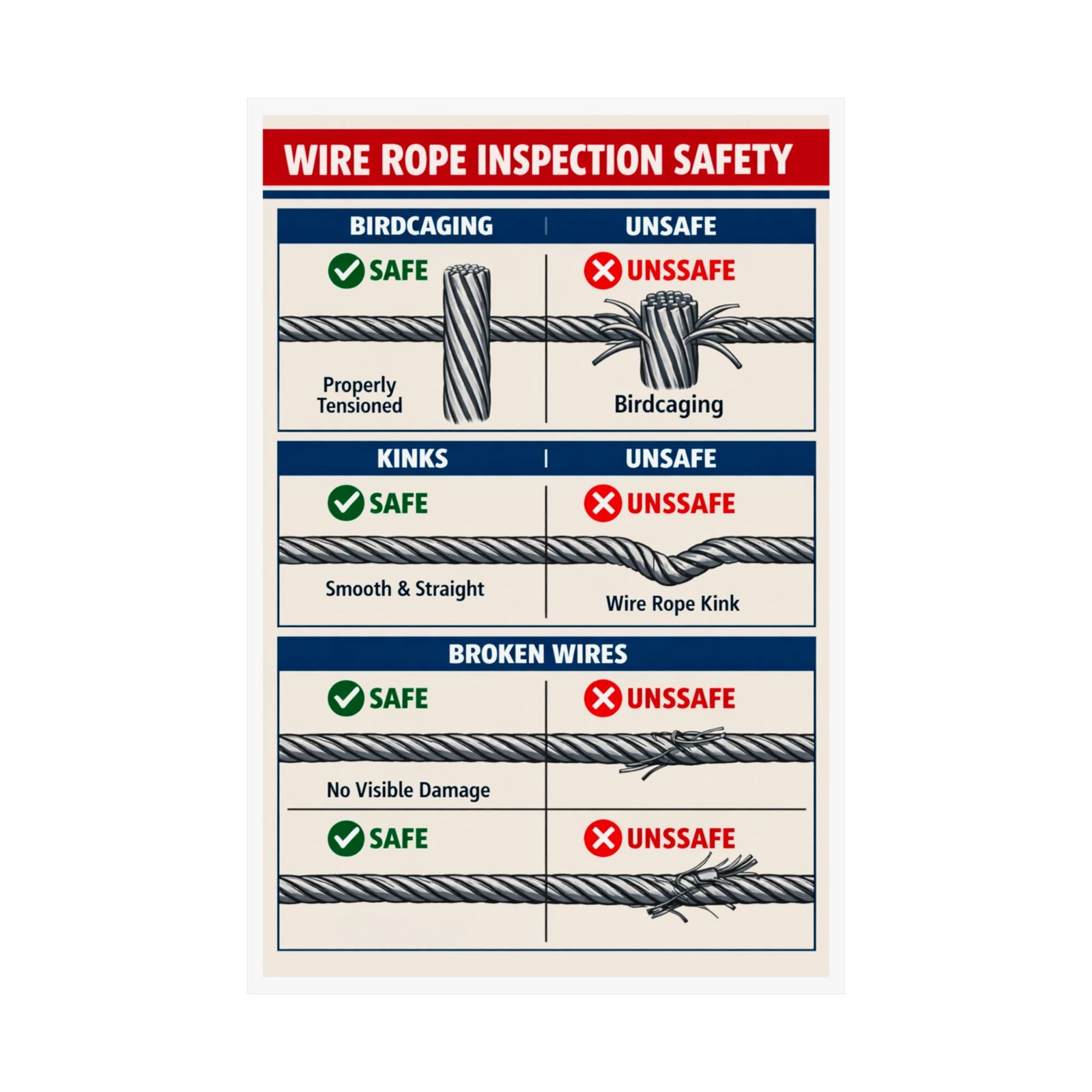

Identifying Three Major Removal-from-Service Conditions

The wire rope inspection safety poster is structured to guide inspectors through the three most common and dangerous rope defects:

Birdcaging: The wire rope inspection safety poster demonstrates the flared strand displacement caused by sudden tension release or core failure, signaling a complete loss of structural integrity.
Wire Rope Kinks: Illustrates the permanent, sharp bends and twists that drastically reduce load capacity and create localized structural weakness.
Broken Wires & Fatigue: This section of the wire rope inspection safety poster teaches workers to look for clustered broken wires and protruding strand ends, which are primary indicators of a rope nearing its retirement age.

Archival Quality for High-Intensity Training and Inspection Stations

This wire rope inspection safety poster is printed on 175–189 g/m² heavyweight archival paper with a premium matte finish. We specifically chose this light-absorbing surface to prevent glare from high-intensity workshop lights or sun-drenched crane cabins, ensuring the “Safe vs. Unsafe” comparisons are readable at a glance. Using Giclée printing technology, the industrial red and navy blue headers remain sharp and fade-resistant. For safety directors and maintenance leads, this wire rope inspection safety poster is an audit-ready reference that demonstrates a commitment to ASME B30.30 wire rope safety and inspection standards.

Compliance Advantage: Directly supports daily pre-use inspections and serves as a foundational training aid for apprentice rigger and operator certification.
Strategic Placement: Ideal for rigging inspection stations, maintenance bays, and tool cribs where wire rope inspection safety poster reference is mandatory.
